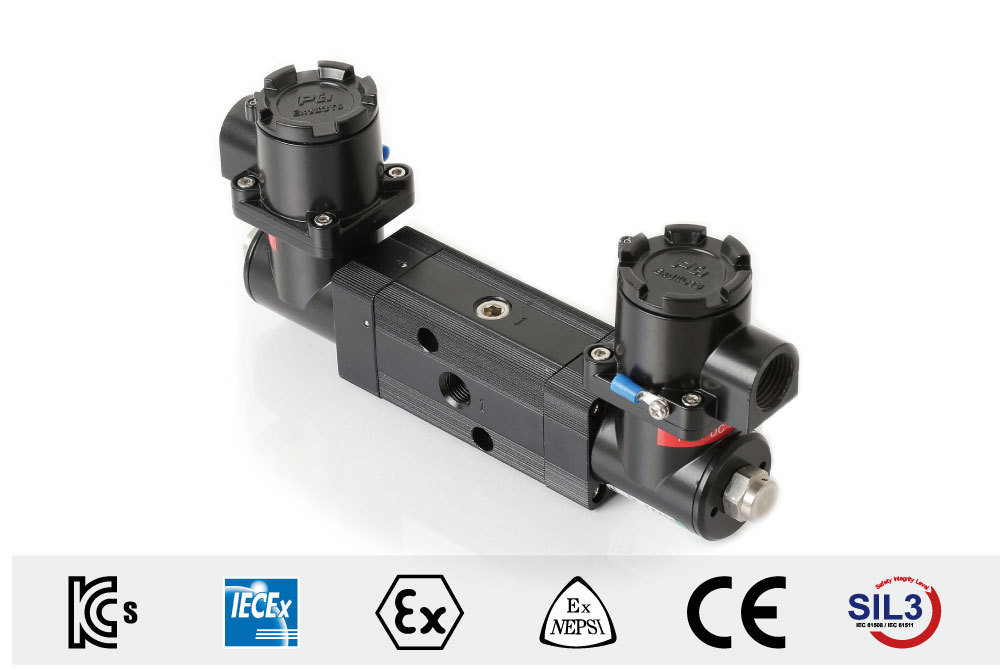

SOLENOID VALVE : ESV-D (Dual Coil)
Explosion proof solenoid valve for a confident control in rough working environments
.jpg)
Features
- Rugged aluminum die-cast housing
- Convertible from 5/2 way to 3/2 way
- Rotatable valve head for optimal mounting
- Direct NAMUR mounting or screw mounting
Specifications
| Operating Air Pressure |
1.5 – 10 kgf/㎠ |
| Air Supply (Max.) | 15 kgf/㎠ |
| Operating Voltage : Current | AC 110V : 55 mA AC 220V : 17 mA DC 24V : 138 mA |
| Voltage Tolerance | ±10% |
| Frequency | 50Hz / 60Hz |
| Explosion Proof Class | Exd IIC T6 (KOSHA Cert. No. 2008-1052-Q1) |
| Operating Ambient Temperature | -20℃ ~ + 60℃ |
| Flow Capacity (Cv) |
0.9 |
| Mounting Configuration | NAMUR or screw interface |
| Pneumatic Connections | Rc 1/4 or NPT 1/4 |
| Electrical Connection |
G 1/2 or NPT 1/2 |
| Coil Insulation Grade | Class F |
| Duty Cycle | 100% |
| Weight | 1.4kg |
