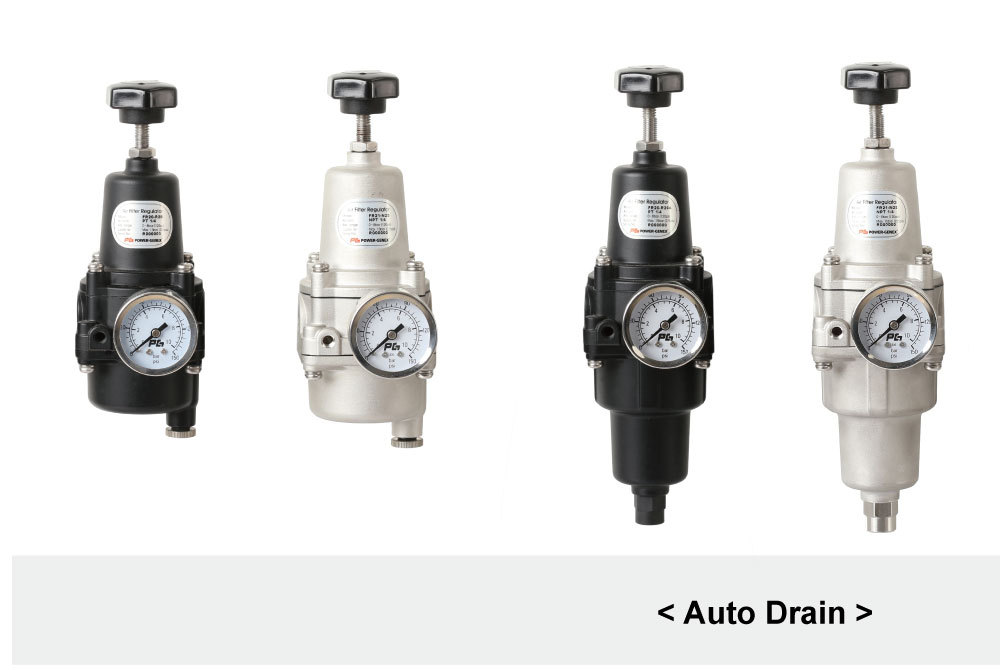

AIR FILTER REGULATOR : FR20
Valve air unit essential to provide clean and dry supply air to valve positioners, solenoid valves and pneumatic actuators
Features
- Rugged aluminum die-cast housing
- Excellent tability and rpeatability
- Stable setting pressure
- High capacity with 5 micron filter
- Self-relief function to balance output and setting pressures
- High flow capacity
Specifications
| Model |
FR20 |
|
| Port size | Rc 1/4 or NPT 1/4 | |
| Fluid |
Air |
|
| Output pressure range | 0 – 8 bar (120psi) | |
| Max. supply pressure | 15 bar (225psi) | |
| Operating and fluid temperature | Max. +70℃ (no freezing) | |
| Supply air | filtered compressed, dry and non-oiled air (up to 5 micron) |
|
| Gauge port size | Rc 1/8 | |
| Filteration | 5 mircon | |
| Hosing material | Aluminum die-cast | |
| Pressure gauge material | Stainless steel | |
| Weight | 0.65 kg | |
How to order
|
||||||||||
|
