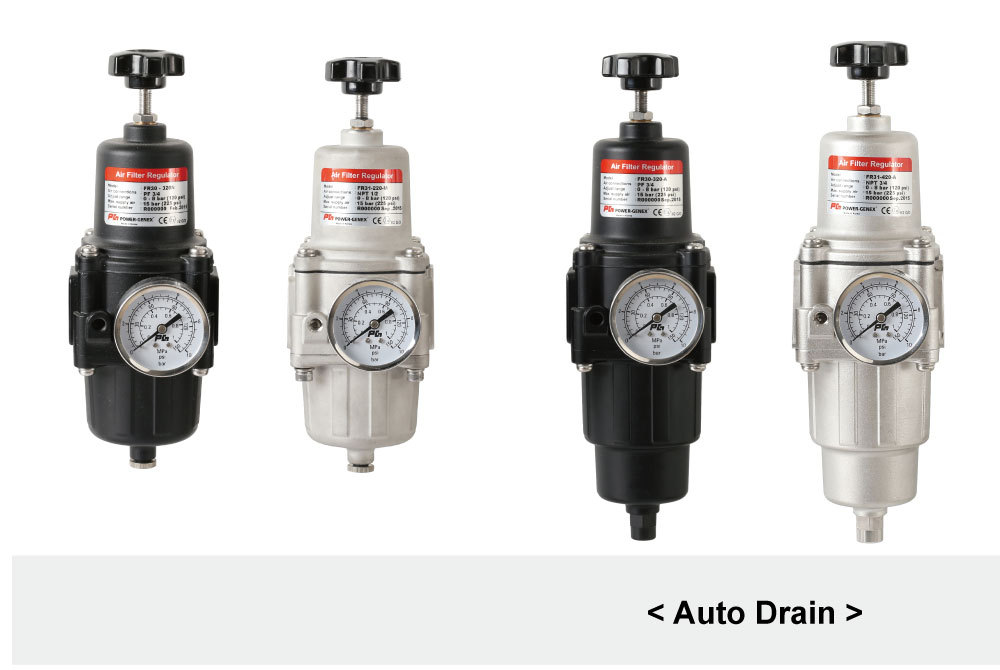

AIR FILTER REGULATOR : FR
Valve air unit essential to provide clean and dry supply air to valve positioners, solenoid valves and pneumatic actuators
 |
 |
FR10 |
FR30 |
Features
- Rugged aluminum die-cast housing
- Optional stainless steel 316 housing
- Stable setting pressure
- High capacity with 5 micron filter
- Self-relief function to balance output and setting pressures
- High flow capacity
Specifications
| Model |
FR10 |
FR30 |
|
| Port size | Rc 1/4 or NPT 1/4 | ||
| Fluid |
Air |
||
| Output pressure range | 0 – 8 bar (120psi) | ||
| Max. supply pressure | 15 bar (225psi) | ||
| Operating and fluid temperature | Max. +70℃ (no freezing) | ||
| Supply air | filtered compressed, dry and non-oiled air (up to 5 micron) |
||
| Gauge port size | Rc 1/8 | ||
| Filteration | 5 mircon | ||
| Hosing material |
Aluminum die-cast |
Stainless steel 316 | |
| Pressure gauge material | Stainless steel | ||
| Weight |
0.5 kg |
1 kg | |
How to order
|
|||||||||||||
|
