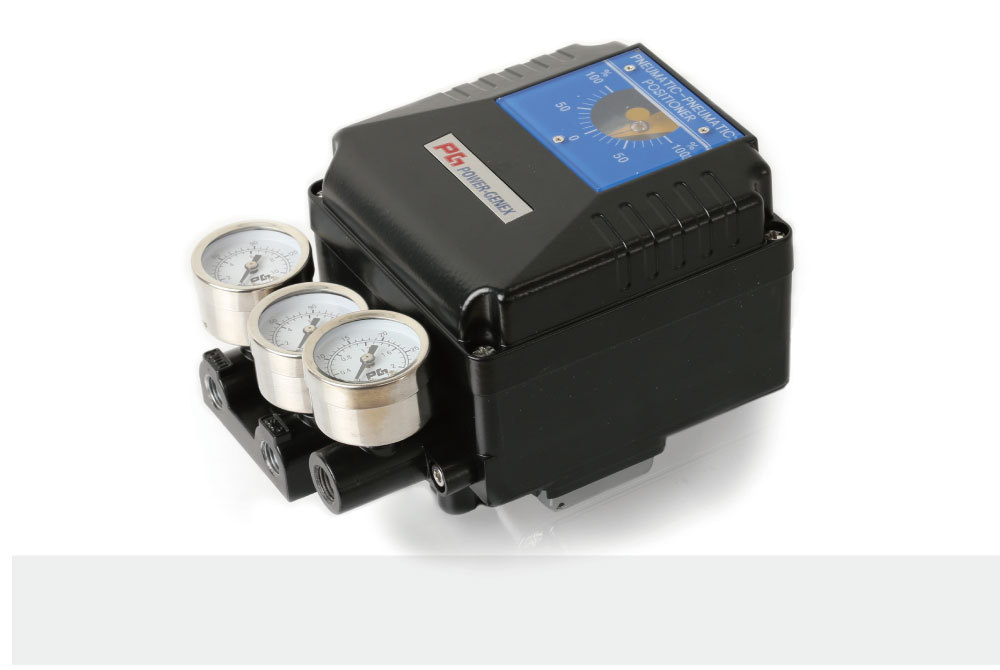

PNEUMATIC-PNEUMATIC POSITIONER : PPR (Rotary Type)

Power - Genex | Positioner | View PDF

Robust valve control device giving a confidence in reliable performance and outstanding durability under harsh working environments

Features

- Easy maintenance
- Precise calibration with simple SPAN and ZERO adjustments
- Simple conversion to direct acting or reverse acting
- 1/2 split range available
- Rugged aluminum housing with corrosion-resistant coating
- Vibration resistant design
- Stainless steel gauges standard
- Restricted pilot valve orifice kit for small actuators included

Option

- Position transmitter (4…20㎃ output signal)
- 2 X SPDT limit switch
- 2 X P&F proximity sensor NJ2-V3-N
- Visual dome indicator
- High temperature

Specifications

	PPR
	Rotary Type (cam feedback)
	Single	Double
Input Signal	0.2 ~ 1.0bar (3 - 15psi)
Supply air pressure	Max. 7.0bar (100psi)
Standard stroke	60 - 100°
Pneumatic connections	Rc 1/4 or 1/4 NPT
Ambient temperature	-20 ~ +70℃
Pressure gauge	Stainless steel
Output characteristics	Linear
Linearity	Within ± 1.0% F.S	Within ± 1.5% F.S
Sensitivity	Within ± 0.5% F.S
hysteresis	Within 1.0% F.S
Repeatability	Within ± 0.5% F.S
Air consumption	5 LPM (Sup. 1.4 kgf/㎤)
Flow capacity	80 LPM (Sup. 1.4 kgf/㎤)
Material	Aluminum die-cast
Weight	2.5 kg

How to order

PPR-

Feedback
Shaft

Pressure
Gauge
(SUP.OUT)

Pilot Valve Orifice

Position Feedback

Connection Threads

Dome Indicator

High
Temp

Mounting Bracket

Description	Code
Feedback shaft :	N : NAMUR shaft (direct mounting) A : fork lever M6 X40L B : fork lever other size on request
Pressure gauge :	1 : 6 bar (90psi) 2 : 10 bar (150psi)
Pilot valve orifice :	S : standard (actuator volume over 180㎤) M : small orifice (Ø1.0 or Ø0.7) (actuator volume 90 ~ 180㎤)
Position feedback :	N : none O : position transmitter (4-20㎃ output signal) L : 2 X SPDT limit switch P : 2 X proximity sensor P&F NJ2-V3-N M : O+L Q : O+P

Description	Code
Connection threads : (pneumatic)	3 : Rc 1/4 4 : NPT 1/4
Dome indicator :	N : flat indicator (standard) D : dome indicator
High temperature : (only for weatherproof type)	T : 70℃ (standard) H : 120℃(without position feedback option) 85℃ (with position feedback option)
Mounting bracket : ·NAMUR shaft type : ·Fork lever type :	N : none R : multi-size bracket for DIN VDI/VDE 3845 (130 X 30 X 50 bracket on request) F : DHCT bracket 80X30 for fork lever type E : multi-size NAMURbracket for fork lever type (130 X 30 X 50 bracket on request)
