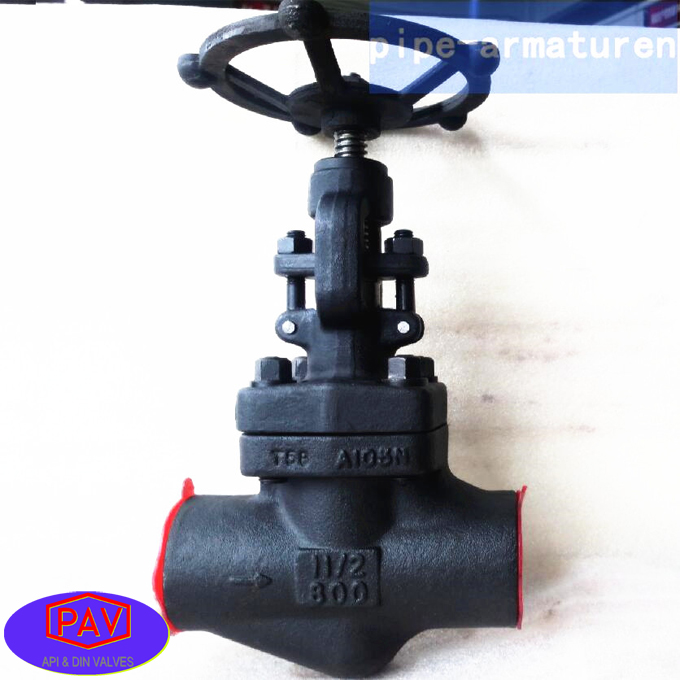

API/ANSI forged valve

Forged Steel,Outside Screw and Yoke,Rising Stem,Non-Rising Handwheel,Integral Backseat,Solid Wedge,Renewable Seat Rings,Sprial Wound Gasket,Reduced Bore or Full Port,Socket Welded,Threaded,Klepafsluiters.Ventil.Globo Bolted Bonnet Diámetros

Structure
Stop Valve,Stop Check Valve globe type,angle type throttling disc for low differential pressure,bolted bonnet valves.full & reduced port.

Standard
Design and Manufacture: API 602/BS 5352
Face to face(end to end): MFG or Customers
Socket welded ends:ASME B16.11(SW)
Thread ends:ASME B1.20.1(NPT)
Test and inspection: API602

Material
ASTM  A105,ASTM A182 F11,F22,F304,F304L,F316,F316L,F321,LF1,LF2,F51,F53,F44
