DIN/EN globe valve
OS&Y,Packing sealed and back sealed,Screwdown Stop&Non-Return Valve.Válvula Globo.válvula de retenção.Globe Vana.throttle globe valves.Glob Vana.VÁLVULA GLOBO.Zawory zaporowe.Robinet à Soupape
Structure

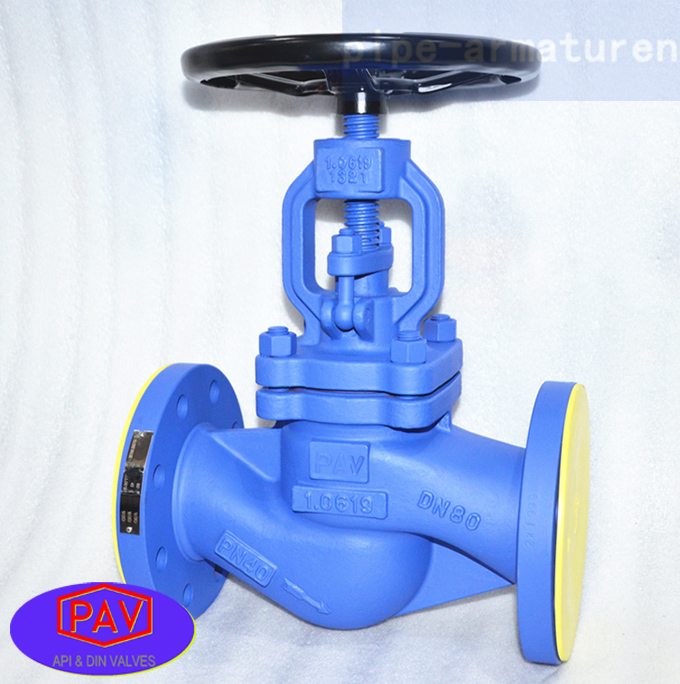

Globe valve OS&Y, Straight-way type. Flanged ends.welded ends. Stem sealed by stuffing box.bolt bonnet.
Application
Industry, power system,vapour facilities,hot water,heating technology, thermal oil applications, shipbuilding, etc.
Medium
gas, hot water, thermal oil, process water, etc.
Material
Cast Iron GG25 ,GG20. Cast Ductile Iron.GGG40 GGG50 etc.GS-C25.1.0619.1.4301. 1.4408
Standard
Nominal diameter: DN15-DN400
Nominal pressure: PN16,PN20,PN25.PN40.PN64.PN100.PN160.PN260.PN320
Design&manufacture standard conforms to EN 13709/DIN 3356
Face to face standard conforms to EN 558-1/DIN 3202-F1/ISO5752
Flange standard conforms to EN 1092-1/DIN 2501
Test conforms to EN 12266/DIN 3230
