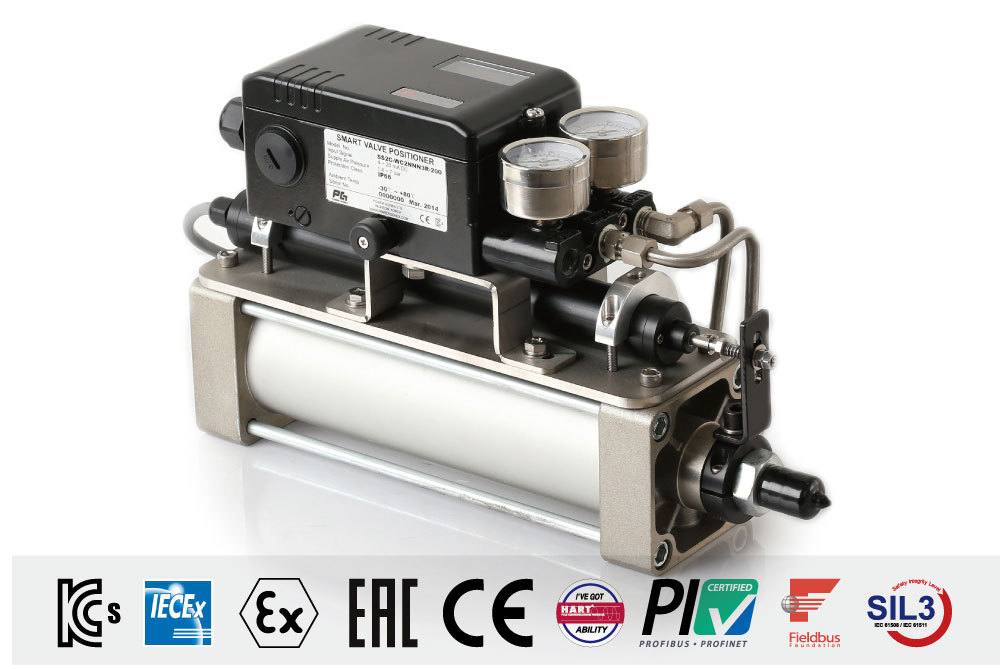

CYLINDER POSITIONER : SS2-Cylinder

Smart performance with innovative and ever-strong coil module even under harsh working environments.

Features





- Easy and quick auto-calibration
- Detecting RA (reverse acting) or DA (direct acting) automatically regardless of wrong air connections
- Providing error messages against performance failures
- Possible to test the actuator with any fixed signal under a test mode
- Wide operating temperature range -30 ~ +80℃
- Low air consumption



Option

- Output position transmitter (4 - 20 mA)
- 2 x alarm limit or micro switch (SPDT)
- Explosion proof type (Exia IIC T6)
- HART communication
- Profibus communication



Specifications



Input Signal

4 - 20 mA @ 24 VDC

Min. / Max. Current

3.6 mA / 50mA

Voltage Drop (Resistance)
Without Hart : 8.7 VDC (435Ω @ 20mA)
With Hart : 9.4 VDC (470Ω @ 20mA)

Stroke

Linear type : 30 - 300mm

Air Supply Pressure

1.4 - 7.0 bar (20 - 100 psi)

Output Pressure Range

0 - 100% of supply air pressure

Air Capacity

80 ℓ/min = 4.8 Nm3/h = 2.8 scfm (Sup = 1.4 bar)
233 ℓ/min = 14 Nm3/h = 8.2 scfm (Sup = 6 bar)

Air Consumption

2.8 ℓ/min = 0.17 Nm3/h = 0.1 scfm (Sup = 1.4 ~ 6 bar)
Performance Characteristic

Linearity  <  ±0.3% F.S
Sensitivity  <   0.2% F.S
Hysteresis  <   0.2% F.S
        Repeatability  <   0.2% F.S

LCD Indication

4-digit LCD indicator

Adjustable Speed

1 - 1000 ( lowest 1, highest 1000 )

Scan Time

2ms

Shut-off Value
Range 0 - 10% of position signal

Valve Action

Direct action(DA) / reverse action(RA)

Operating Temperature

-30 ~ +80℃ (-22 ~ +176℉) **
Pneumatic Connections

Rc 1/4 or 1/4 NPT

Electrical Connections

2 x G 1/2 or 1/2 NPT

Protection Class

IP66,  intrinsic safety (Exia IIC T6)

Body Material

Aluminum die-cast / powder-painted

Weight

1.6 kg



How to order



SS2-
Actuator Operation
Protection Class
Feedback Lever
Pressure
Gauges
Position
Feedback
Communi-
cation

Connection
Threads

Description

Code

Actuator Operation :
C : Cylinder type
Protection Class : I : Intrinsic safety (Exia IIC T6)
W   Weatherproof to IP66
Feedback Lever : A: Stroke (30 ~ 300mm)
Gauge Block : N : 없음
1 : 6 bar (90psi)
2 : 10 bar (150psi)

Description

Code

Position Feedback :
N : None
O : Position transmitter
     (4 ~ 20mA output signal)
L : 2 x alarm limit
S : 2 x micro switch (SPDT)
M : O+L
Q : O+S
Communication : N : None
H : HART communication
P : Profibus communication
Connection Threads
(pneumatic-electrical)
3 : Rc 1/4 or G1/2 (standard)
4 : NPT 1/4 or NPT 1/2
5 : Rc 1/4 or M20 x 1.5
